Description

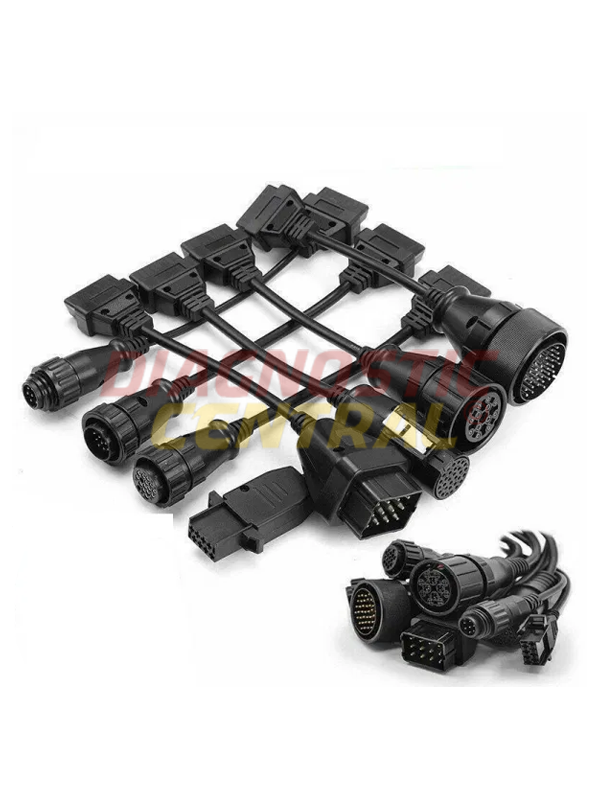

8pc Truck & Trailer OBD2 Diagnostic Adapter Cable Set

This 8-piece truck and trailer OBD2 diagnostic adapter cable set allows compatible diagnostic equipment with a standard OBD2 connection to connect to commercial vehicles and trailers fitted with manufacturer-specific diagnostic sockets.

The kit includes diagnostic adapter cables for MAN, Iveco, Scania, Mercedes-Benz, Renault and Volvo trucks, together with a 7-pin Knorr/Wabco trailer diagnostic adapter.

Compatible with suitable OBD2 truck diagnostic equipment including Delphi/Autocom DS150E and CDP+ interfaces.

What’s Included?

• 7-pin Knorr / Wabco trailer diagnostic cable
• 12-pin MAN diagnostic adapter cable
• 37-pin MAN diagnostic adapter cable
• 30-pin Iveco diagnostic adapter cable
• 16-pin Scania diagnostic adapter cable
• 14-pin Mercedes-Benz diagnostic adapter cable
• 12-pin Renault diagnostic adapter cable
• 8-pin Volvo diagnostic adapter cable

Why Are Truck Diagnostic Adapter Cables Needed?

Many older trucks, commercial vehicles and trailers do not use the standard 16-pin diagnostic connection found on most modern vehicles.

Manufacturers used a variety of their own diagnostic connector designs, meaning a suitable adapter cable is required to connect standard OBD2 diagnostic equipment to the vehicle.

This kit provides a useful selection of the most commonly required commercial-vehicle diagnostic adapters in one set.

Compatible Diagnostic Equipment

These adapters can be used with compatible truck diagnostic scanners and interfaces that use a standard OBD2 connection, including:

• Delphi DS150E
• Autocom DS150E
• CDP+
• Other compatible OBD2 commercial-vehicle diagnostic equipment

Please note: these are diagnostic adapter cables only. They are not diagnostic scanners and do not contain diagnostic software.

A suitable diagnostic interface and truck diagnostic software are required separately.

MAN Truck Diagnostic Adapters

The kit contains both 12-pin and 37-pin MAN diagnostic adapter cables, allowing suitable diagnostic equipment to connect to compatible MAN commercial vehicles fitted with these older diagnostic sockets.

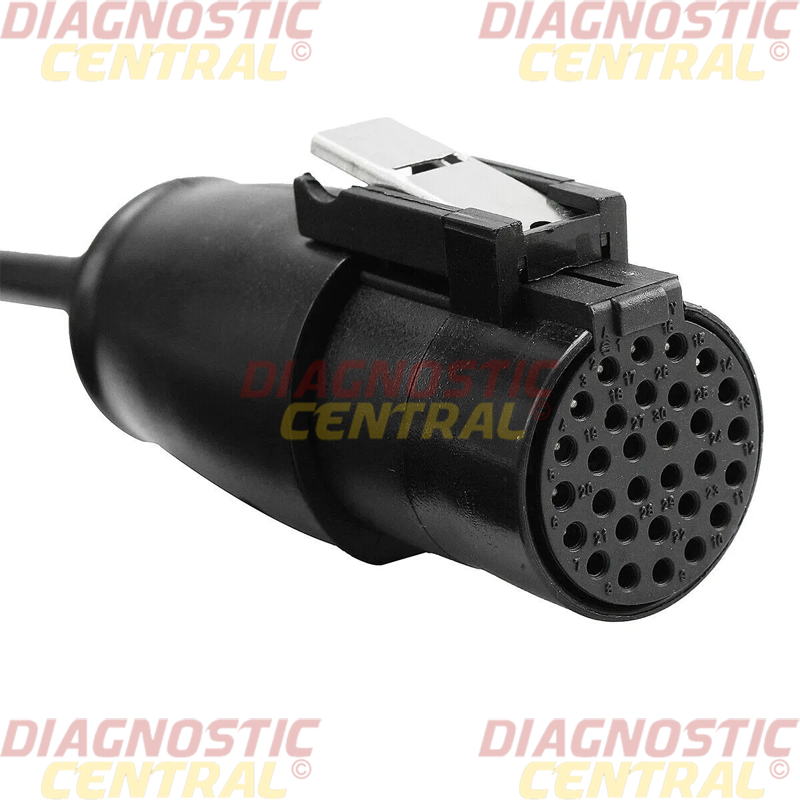

Iveco 30-Pin Diagnostic Adapter

The included 30-pin Iveco adapter provides a connection for compatible Iveco trucks and commercial vehicles fitted with the corresponding manufacturer-specific diagnostic socket.

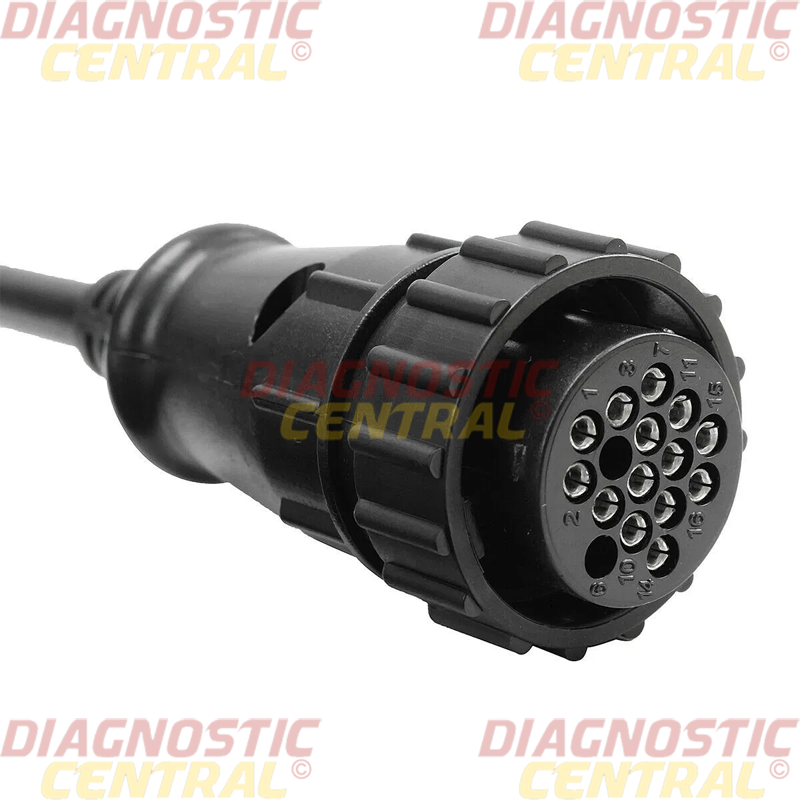

Scania 16-Pin Diagnostic Adapter

A 16-pin Scania diagnostic adapter cable is included for compatible Scania commercial vehicles using the appropriate diagnostic connection.

Mercedes-Benz 14-Pin Truck Diagnostic Adapter

The 14-pin Mercedes-Benz adapter allows compatible diagnostic equipment to connect to supported Mercedes commercial vehicles fitted with the corresponding diagnostic socket.

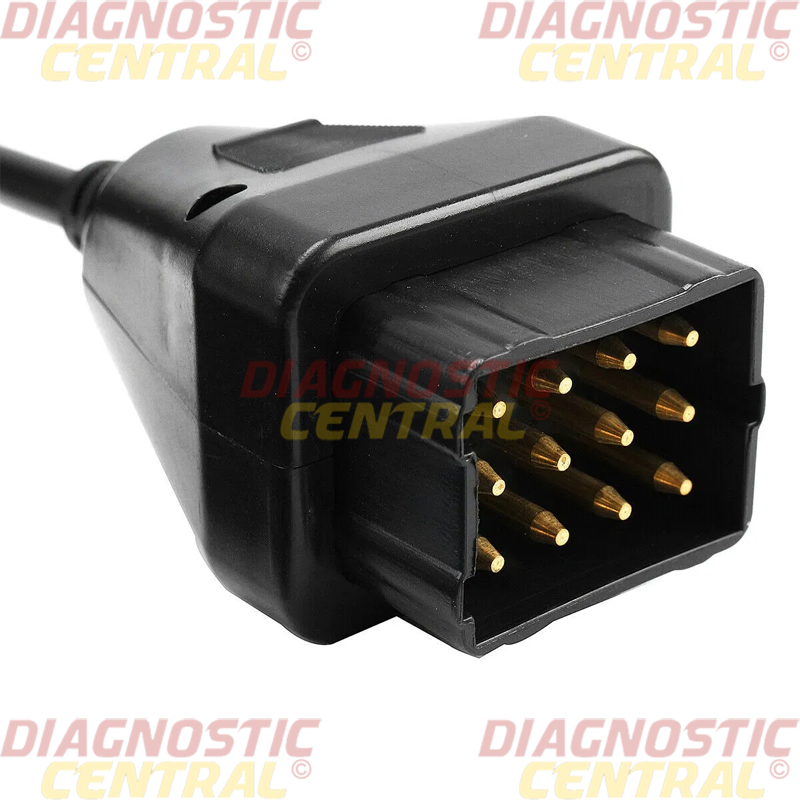

Renault 12-Pin Diagnostic Adapter

The kit includes a 12-pin Renault diagnostic adapter for compatible Renault trucks and commercial vehicles using this diagnostic connection.

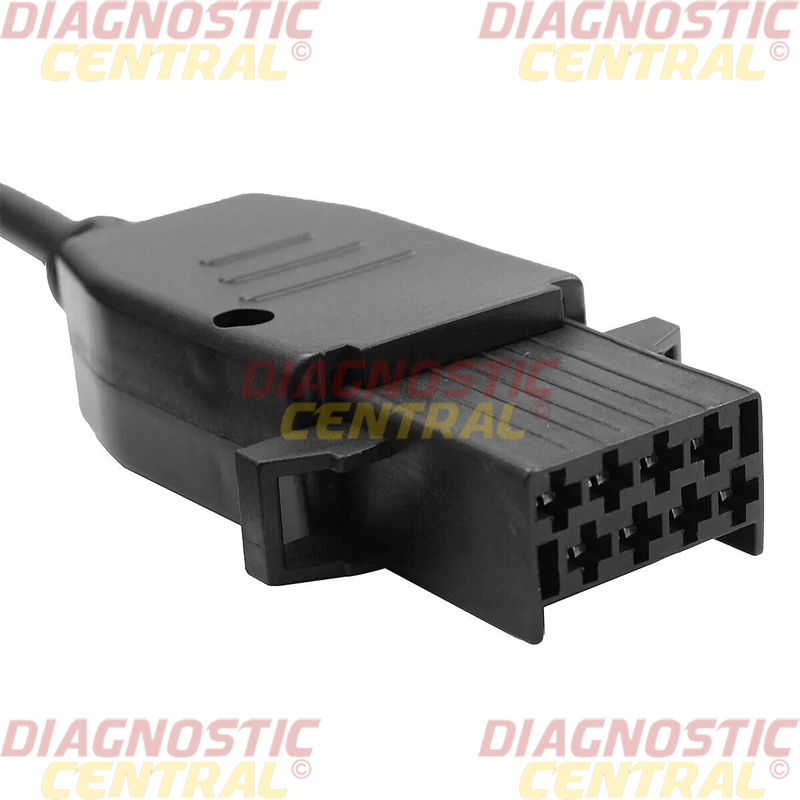

Volvo 8-Pin Diagnostic Adapter

An 8-pin Volvo diagnostic adapter is included for compatible Volvo commercial vehicles fitted with the corresponding diagnostic socket.

Knorr / Wabco 7-Pin Trailer Diagnostic Cable

The included 7-pin Knorr/Wabco trailer cable provides a connection for compatible trailer diagnostic systems using the corresponding 7-pin diagnostic connection.

Important Compatibility Information

These cables provide the physical connection between the vehicle or trailer and compatible diagnostic equipment. They do not add diagnostic functions or vehicle coverage that are not supported by your diagnostic interface and software.

Available diagnostic functions depend on the vehicle or trailer system, diagnostic interface and software being used.

Always check the diagnostic socket fitted to the vehicle before ordering. If you require an adapter for a particular truck or trailer and are unsure which connection is fitted, please contact Diagnostic Central before purchasing.

Package Contents

• 1 x 7-pin Knorr/Wabco trailer diagnostic cable
• 1 x 12-pin MAN diagnostic adapter
• 1 x 37-pin MAN diagnostic adapter
• 1 x 30-pin Iveco diagnostic adapter
• 1 x 16-pin Scania diagnostic adapter
• 1 x 14-pin Mercedes-Benz diagnostic adapter
• 1 x 12-pin Renault diagnostic adapter
• 1 x 8-pin Volvo diagnostic adapter

Diagnostic scanner/interface and diagnostic software are not included.
