Description

KWP2000 Plus Legacy ECU Reader and Writer

The KWP2000 Plus is a proven ECU read/write interface for supported older European vehicles and ECU families. It is particularly useful for many Bosch EDC15 and ME7 applications, including selected VAG 1.9 TDI, Peugeot/Citroën HDi, Fiat/Alfa/Lancia JTD, BMW diesel and Mercedes CDI vehicles.

Important compatibility information: This is a legacy tool and does not support every vehicle or ECU. Compatibility is determined by the exact ECU type, not simply the vehicle make and model. Check the list before ordering or contact Diagnostic Central with the VIN and ECU details.

View or download the KWP2000 vehicle and ECU compatibility list

Popular supported ECU families

• VAG 1.9 TDI – Bosch EDC15V, EDC15VM and EDC15P
• Peugeot and Citroën 2.0/2.2 HDi – Bosch EDC15C2
• Fiat, Alfa Romeo and Lancia JTD – Bosch EDC15C5 and EDC15C7
• BMW diesel – Bosch DDE3.0 and DDE4.0
• Mercedes CDI – Bosch EDC15C5 and EDC15C6
• Selected older petrol ECUs including Bosch ME7 variants

Software, instructions and support

The required software and getting-started instructions are supplied as downloads. Diagnostic Central does not supply modified or remapped ECU files, edit customers’ ECU files, or provide technical support for carrying out remapping procedures. The purchaser is responsible for using a correct compatible file, maintaining stable power and having the knowledge required to read or write an ECU safely.

Computer requirements

• Legacy software intended for 32-bit Windows systems
• For Windows 10, run the software in compatibility mode
• Windows 11 and 64-bit Windows are not supported

Please check your computer before ordering. If you are unsure whether your Windows installation is 32-bit or 64-bit, contact us before purchase.

Key functions

• Read the original file from supported ECUs
• Write compatible tuned or replacement ECU files
• Recover certain supported ECUs affected by software corruption
• USB connection to a Windows computer
• OBD2 and legacy BMW/Mercedes connection cables included
• Status LEDs for USB power, vehicle power and data activity

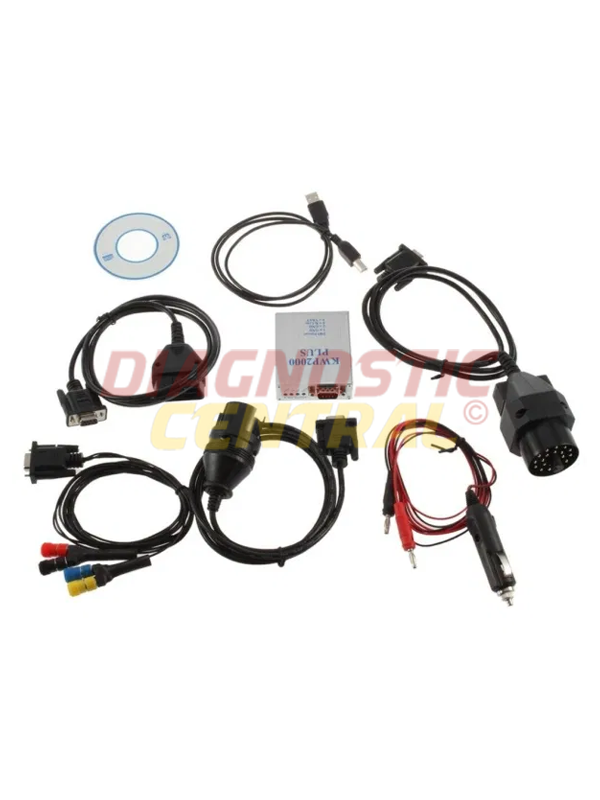

What is included

• KWP2000 Plus interface

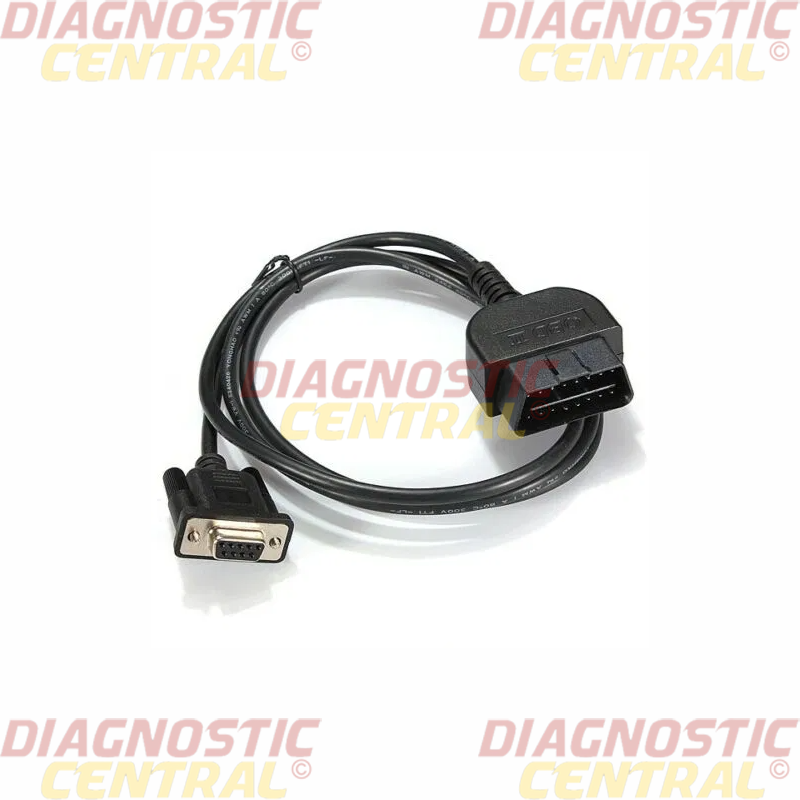

• Standard 16-pin OBD2 cable

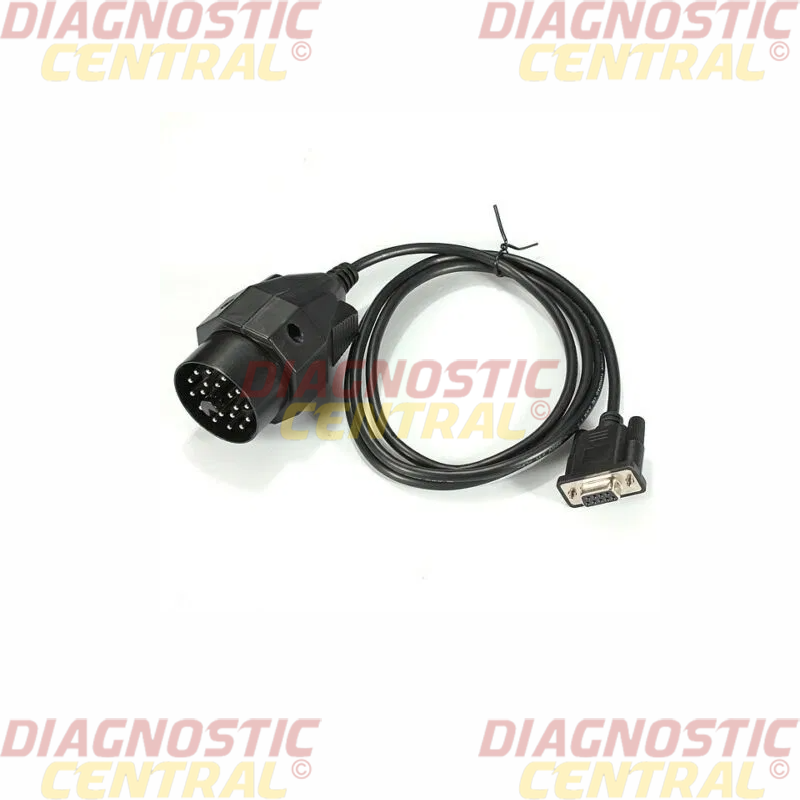

• BMW 20-pin cable

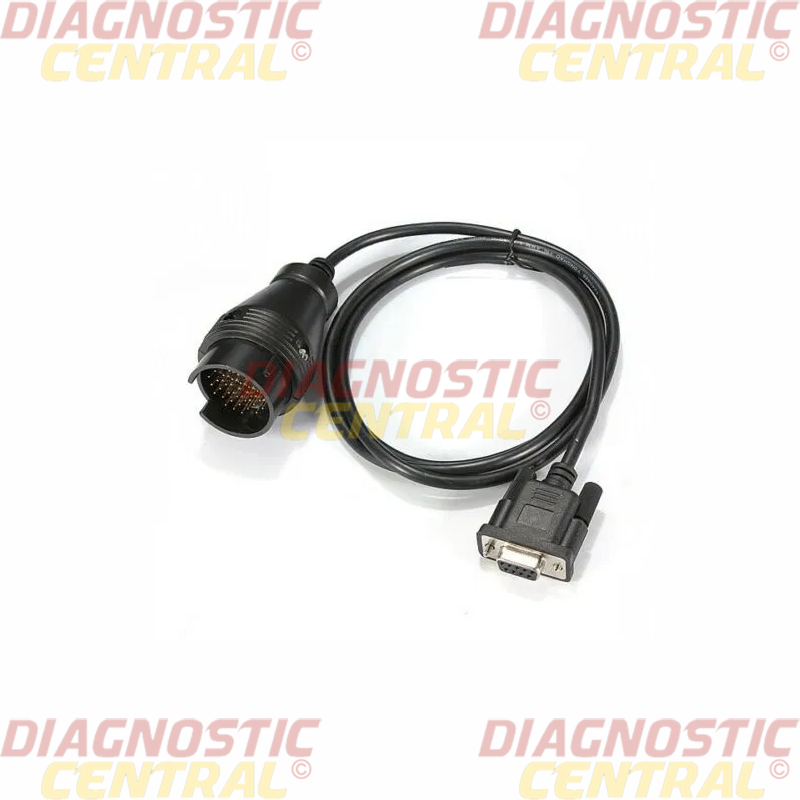

• Mercedes 38-pin cable

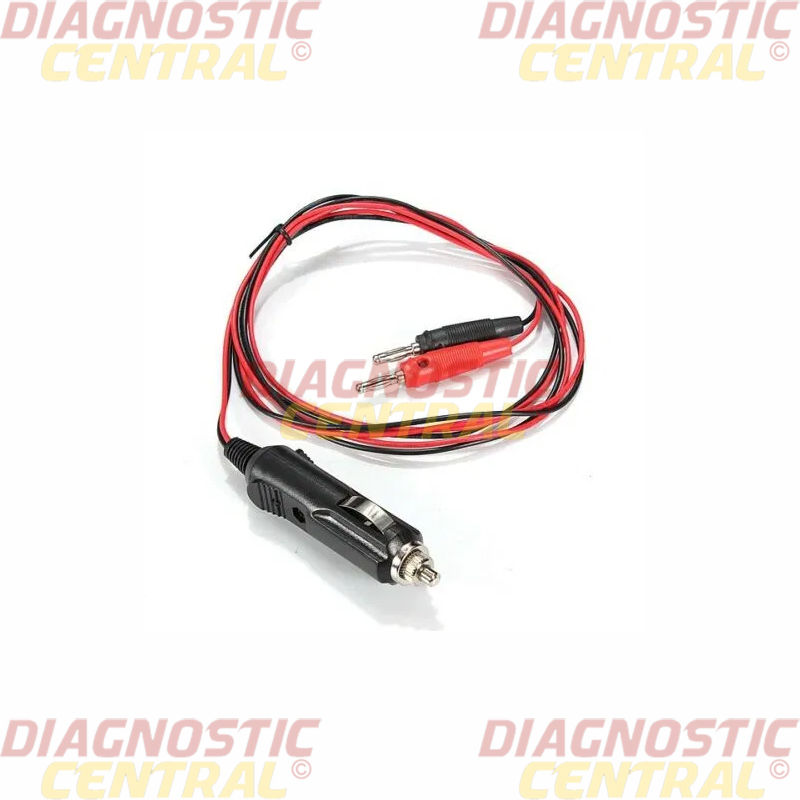

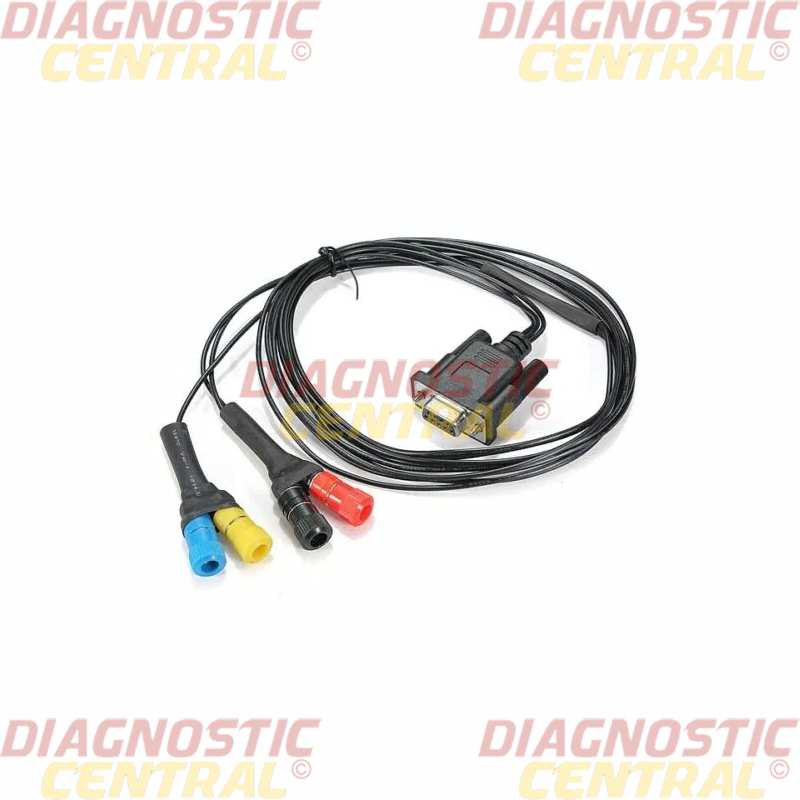

• Female banana cable and power connector

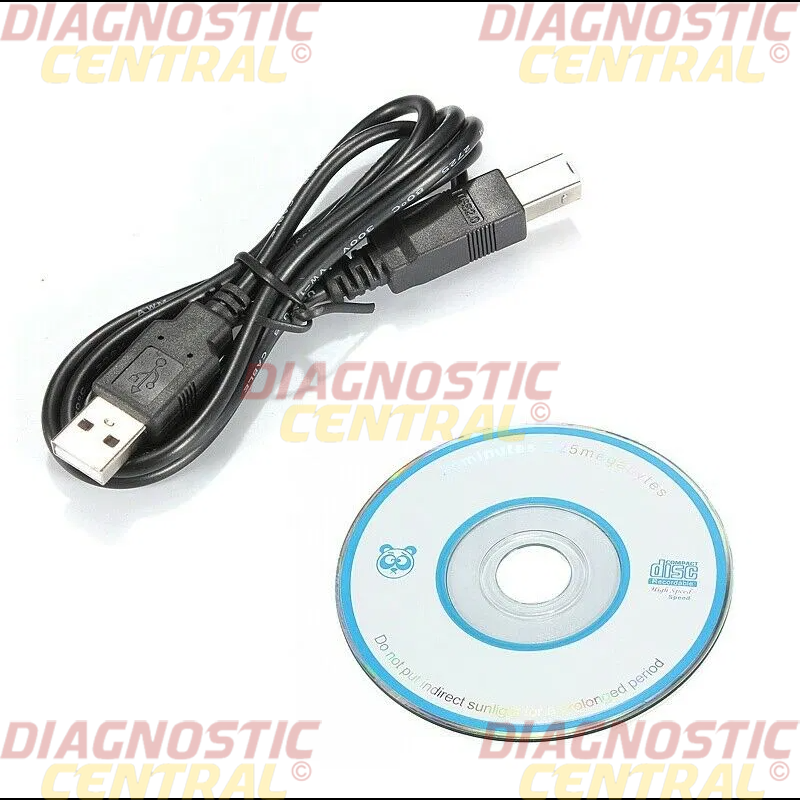

• USB A/B cable
• Software

Before ordering

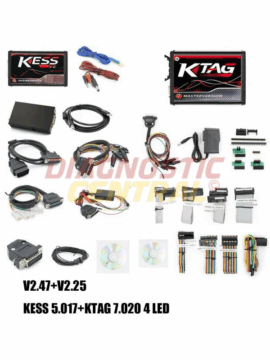

ECU programming carries a risk if power is interrupted, an incompatible file is used or the ECU is not supported. Maintain stable vehicle and computer power, save the original file before writing and follow the supplied instructions. This product is best suited to older supported ECUs. For newer vehicles or broader coverage, see our KESS, KTAG and complete ECU remapping packages.

Getting-started instructions are supplied as a download after purchase.
