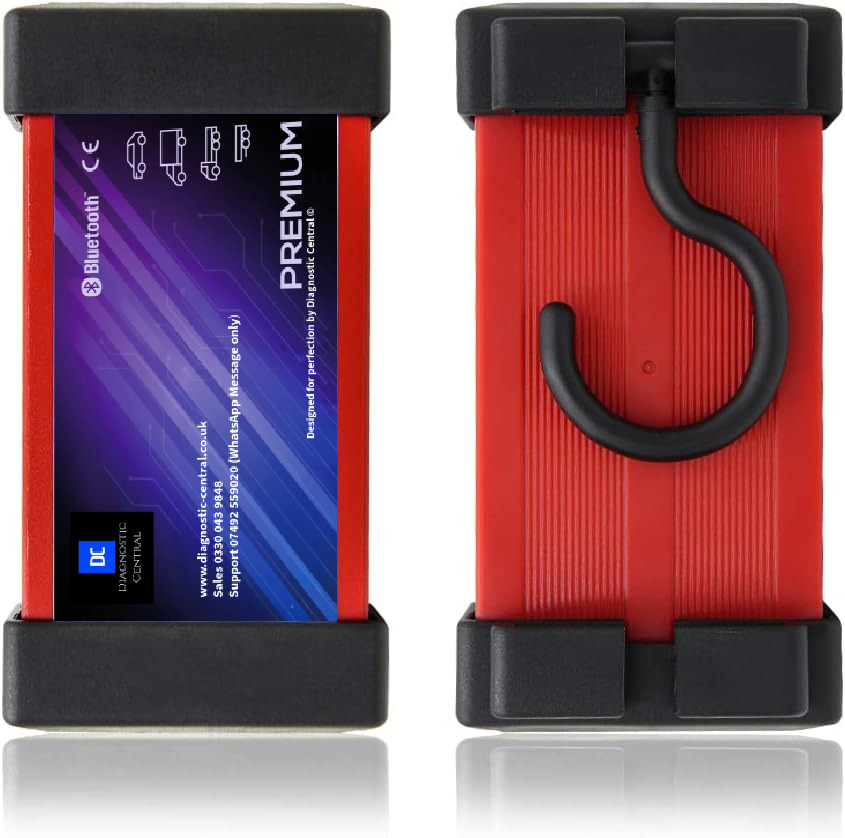

Diagnostic Central Professional Car & Truck Diagnostic Tool

Diagnostic Central’s own professional multi-brand diagnostic interface, developed specifically for us and supplied with Delphi/Autocom 2022 Cars & Trucks diagnostic software.

We wanted to offer something considerably better than the typical low-cost DS150E/Multidiag interfaces available online. We start with a Multidiag-style unit, remove the standard internal circuit board and replace it with our own upgraded single-board VCI, manufactured exclusively for Diagnostic Central.

Our board is based on the proven Delphi DS150E single-board design but uses carefully selected, higher-quality components and improvements to the communication circuitry. It runs 3201 firmware and is designed to provide reliable communication across a very wide range of cars, vans, trucks, buses and trailers.

The package includes Delphi/Autocom 2022 Cars & Trucks diagnostic software, which we remotely install and activate for you.

Why Is the Diagnostic Central VCI Different?

Not all DS150E-style diagnostic interfaces are the same. Many inexpensive versions are manufactured using substitute or lower-cost components, and some boards even have components omitted or replaced with dummy parts.

This can result in communication problems with certain vehicles and control modules. Problems are particularly noticeable with some MAN, Mercedes-Benz and DAF commercial vehicles, certain Opel/Vauxhall systems, VAG live-data functions and some BMW models.

Our upgraded single-board VCI was developed to overcome many of these common hardware limitations.

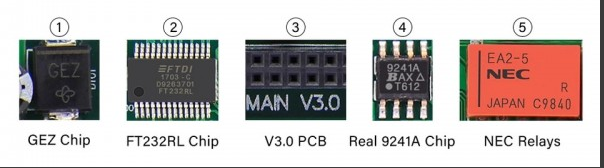

Upgraded Internal Components

• High-quality multilayer single-board PCB
• Fully compatible with 3201 firmware
• Original Japanese NEXEM 5V UD2-5NU relays
• Original NXP chips
• Original TJA1050 CAN transceivers
• Original NCV7356G single-wire CAN transceiver
• 701 CAN filters – not dummy components
• Original Si9241 microcircuits
• 30V GEZ suppressor
• 30V Zener diodes
• All components are new – no used components

The result is a much higher-quality interface than the typical budget DS150E-style unit.

Cars & Trucks in One Diagnostic System

The Diagnostic Central VCI combines car and commercial vehicle diagnostics in one interface.

• Cars & light vans: Brand-specific diagnostics from approximately 1988 onwards
• Commercial vehicles: Light and heavy commercial vehicles, buses, trucks and trailers from approximately 1995 onwards
• Generic EOBD/OBD-II: Emissions-related diagnostics on compatible vehicles

This makes it an excellent choice for independent garages, mobile mechanics, commercial vehicle workshops and experienced enthusiasts who work on multiple makes and models.

Please note: Vehicle coverage and available functions vary according to manufacturer, model, year, engine and fitted control modules. Not every function is available on every vehicle.

Main Diagnostic Functions

Depending on the vehicle and control module, available functions can include:

• Read and erase diagnostic trouble codes
• View real-time live data and sensor values
• Intelligent full-system scanning
• Engine management diagnostics
• Transmission and gearbox diagnostics
• ABS and ESP diagnostics
• SRS / airbag diagnostics
• Service interval reset
• Instrument cluster and dashboard diagnostics
• Climate control diagnostics
• Body and comfort electronics
• Immobiliser diagnostics
• Basic settings and adjustments
• Manufacturer-specific serial diagnostics
• EOBD/OBD-II diagnostics

Intelligent System Scan (ISS)

Intelligent System Scan can automatically scan compatible control systems throughout the vehicle and display the fault codes stored within each system.

This saves considerable diagnostic time by providing a quick overview of the vehicle. Once the scan is complete, you can select an individual control system and investigate it in greater detail.

Intelligent System Identification (ISI)

Intelligent System Identification helps automatically identify the type of controller fitted to the vehicle, helping ensure that the diagnostic session uses the correct parameters for the selected system.

Automatic VIN Identification

On supported vehicles, the CARS software can read the Vehicle Identification Number (VIN) directly from the vehicle.

This can automatically help identify the correct vehicle model and year and, where supported, the relevant engine configuration.

Live Data

View real-time information from compatible sensors and control modules while the vehicle is running.

Live data can be invaluable when diagnosing faults that cannot be identified simply by reading stored fault codes, allowing you to monitor actual sensor values and vehicle operating conditions.

Flight Recorder

The flight recorder function allows compatible parameters to be recorded while the vehicle is being driven.

This is particularly useful when diagnosing intermittent problems which only occur under specific driving conditions. Events can be highlighted during recording and investigated afterwards.

Vehicle Voltage Monitoring

When connected to the vehicle, the interface can monitor vehicle battery voltage. If voltage becomes excessively high or low, the system can provide a warning through the diagnostic interface/software.

Maintaining a stable vehicle voltage is particularly important during diagnostic procedures and adjustments.

USB & Bluetooth Connectivity

The Diagnostic Central VCI can communicate with your computer using either the supplied USB cable or Bluetooth.

For professional diagnostic work, we strongly recommend using the USB connection wherever possible.

A wired USB connection provides faster, more stable communication and eliminates the possibility of wireless interference or Bluetooth signal dropout. This is particularly important when carrying out functions where interruption of communication could cause problems.

Bluetooth remains available where a wireless connection is convenient, particularly for general fault-code reading and viewing live data.

Vehicle Connection

The interface connects directly to vehicles equipped with a standard 16-pin OBD-II diagnostic connector.

Older vehicles and many commercial vehicles use manufacturer-specific diagnostic connectors. Optional adapter cable sets are available separately for these applications.

Supported Communication Protocols

The interface incorporates multiplexer technology and supports a wide range of vehicle communication standards, including:

• 2x HS CAN (ISO 11898-2)
• SW CAN (SAE J2411)
• K/L Line (ISO 9141-2)
• VPW (J1850)
• PWM (J1850)
• RS485 / J1708
• TTL

Delphi/Autocom 2022 Cars & Trucks Software

The package is supplied with Delphi/Autocom 2022 Cars & Trucks diagnostic software.

The software provides multi-brand diagnostic coverage across a very large number of European, Asian and other vehicle manufacturers, allowing one diagnostic interface to be used across many different makes and models.

Supported Car Manufacturers

Car and light-commercial coverage includes manufacturers such as:

Alfa Romeo, Audi, BMW, Cadillac, Chevrolet, Chrysler, Citroën, Dacia, Daewoo, Dodge, Ferrari, Fiat, Ford, Honda, Hyundai, Isuzu, Iveco, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Lotus, Maserati, Mazda, Mercedes-Benz, MG, MINI, Mitsubishi, Nissan, Opel/Vauxhall, Peugeot, Porsche, Renault, Rolls-Royce, Rover, Saab, SEAT, Škoda, Smart, SsangYong, Subaru, Suzuki, Toyota, Volkswagen and many more.

Supported Truck & Commercial Vehicle Manufacturers

Commercial vehicle coverage includes manufacturers such as:

DAF, Fiat, Ford, Hyundai, Isuzu, Iveco, MAN, Mazda, Mercedes-Benz, Mitsubishi, Nissan, Opel/Vauxhall, Peugeot, Renault, Scania, Toyota, Volkswagen, Volvo and others.

IMPORTANT: The level of diagnostic support varies between vehicles. Available functions depend on the make, model, year, engine, control system and modules fitted to the vehicle.

Windows Compatibility

The software is compatible with a range of Windows operating systems:

• Windows 7 SP1
• Windows 8
• Windows 10
• Windows 11
• 32-bit and 64-bit versions supported

Windows 7 and Windows 8 remain particularly useful for dedicated automotive diagnostic laptops. A considerable amount of professional automotive diagnostic software and associated drivers were originally developed for older Windows operating systems, so many workshops deliberately retain dedicated Windows 7/8 diagnostic machines.

Important: Snapdragon / ARM-Based Computers

Not compatible with Microsoft Surface models using Snapdragon or other ARM processors, including Surface Pro X and Snapdragon-based Surface Pro 11 models, or other Windows-on-ARM computers. The supplied VCI USB drivers require an Intel- or AMD-based Windows PC. Windows application emulation does not make these USB drivers compatible with ARM processors.

USB connection: A direct USB-A connection is recommended. If your compatible Intel/AMD computer only has USB-C ports, use a suitable USB-C-to-USB-A adapter that supports USB data. Charge-only cables and unsuitable or faulty adapters can prevent communication. USB-C itself does not make a computer incompatible; an adapter cannot overcome ARM driver incompatibility.

Please check your computer’s processor type before purchasing. Windows 11 alone does not confirm compatibility.

Windows XP is no longer supported.

Computer Requirements

• Windows 7 SP1, 8, 10 or 11
• 32-bit or 64-bit Windows
• Minimum 10GB free hard-drive space
• Internet connection for remote installation
• Available USB port recommended
• .NET Framework 4.5.1
• Microsoft SQL CE Compact 4.0 Redistributable Component
• Virtual machines are not supported

Remote Software Installation & Activation

You don’t need to struggle with installing and configuring the diagnostic software yourself.

We remotely install and activate the software on your compatible Windows computer for you.

The purchase price includes one remote installation and activation on one compatible computer.

The software activation is tied to that computer. Once installation is complete, we strongly recommend making a complete backup image of the computer using Acronis or similar disk-imaging software.

A full backup allows you to protect the working diagnostic installation and can save considerable time if the computer’s hard drive or Windows installation develops a problem in the future.

Please ensure that the computer you intend to use is working correctly and meets the system requirements before arranging the installation.

Software Languages

Available languages include:

English, Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Spanish, Swedish and Turkish.

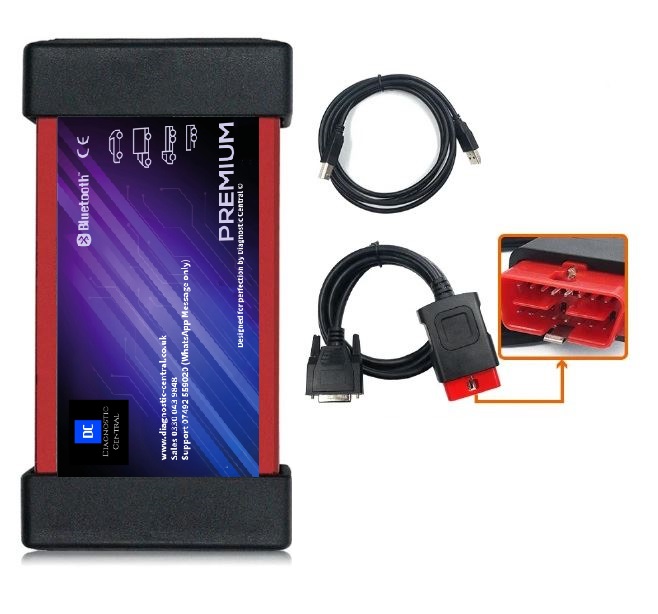

What’s Included?

• 1 x Diagnostic Central upgraded single-board VCI
• Delphi/Autocom 2022 Cars & Trucks diagnostic software
• 1 x Remote software installation and activation
• 1 x USB cable

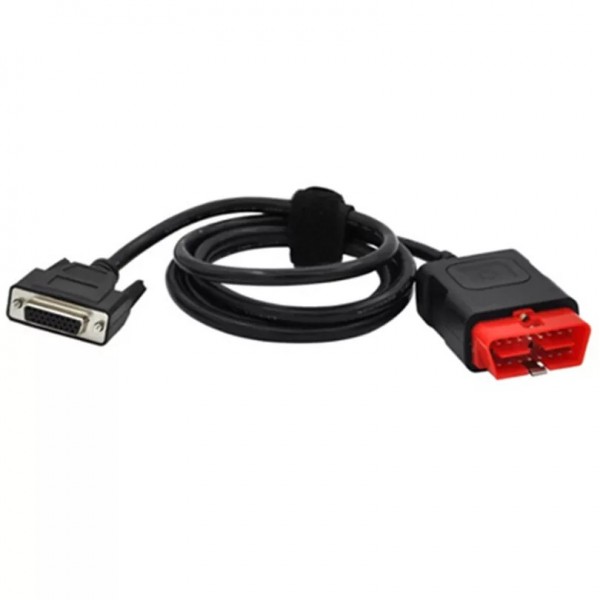

• 1 x OBD-II vehicle connection cable
• Downloadable instructions

24V Commercial Vehicles

If you intend to use the interface on a vehicle with a 24V electrical system, we recommend also purchasing our 24V to 12V Converter.

Who Is This Diagnostic Tool For?

The Diagnostic Central Professional Car & Truck Diagnostic Tool is ideal for:

• Independent garages
• Professional mechanics
• Mobile mechanics
• Car and van repair workshops
• Commercial vehicle workshops
• Fleet maintenance
• Experienced DIY mechanics and enthusiasts
• Anyone requiring multi-brand car and truck diagnostics from one interface

Why Buy the Diagnostic Central Version?

There are countless inexpensive DS150E-style interfaces available online. The important difference is what is actually inside them.

Our VCI was developed because we wanted to offer our customers a higher-quality interface rather than simply selling another generic low-cost unit. We use our own upgraded single-board design with carefully selected components to improve communication and reliability across a wider range of vehicle systems.

Combined with Delphi/Autocom 2022 Cars & Trucks software and our remote installation service, this provides an extremely capable multi-brand diagnostic package for both passenger and commercial vehicles.

Important Vehicle Coverage Information

No multi-brand diagnostic tool supports every function on every vehicle.

The diagnostic functions available depend on the vehicle manufacturer, model, year, engine, communication system and individual control modules fitted.

If you are purchasing the tool for a particular vehicle or require a specific function, please contact Diagnostic Central before ordering with the vehicle make, model, year and the function you need. We will advise you on suitability wherever possible.

Diagnostic Central is an independent diagnostic equipment supplier and is not affiliated with or endorsed by Autocom. Vehicle manufacturers, product names and trademarks remain the property of their respective owners.
