Delphi DS150E Car & Truck Diagnostic Tool – Double Board
This listing is for the Double Board version of the DS150E diagnostic interface. It offers a lower-cost route to general multi-system diagnostics on supported cars, vans and commercial vehicles.
Double Board and Single Board versions use the same outer housing and therefore look identical externally. Their distinguishing feature is the PCB fitted inside the interface.

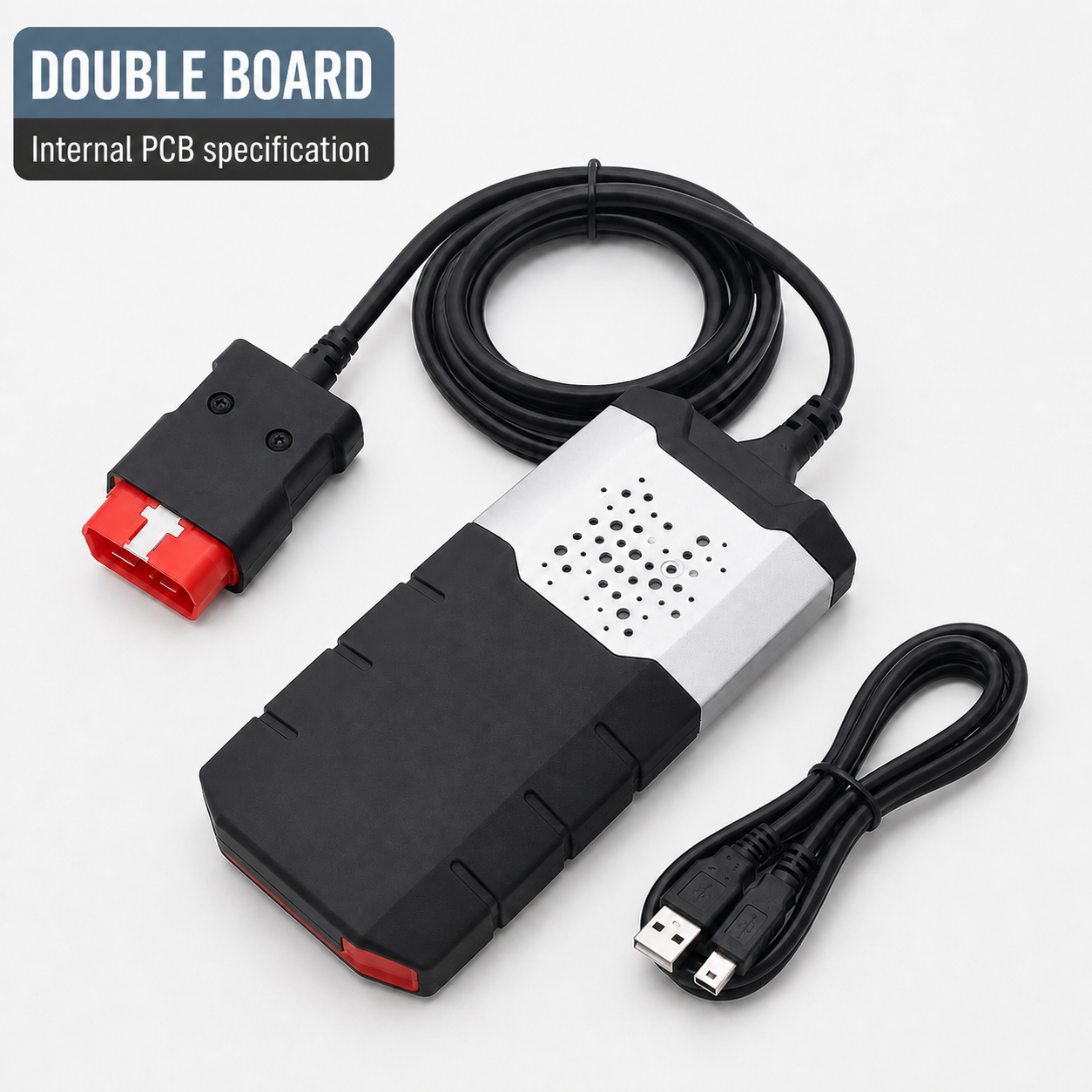

Image note: Single Board and Double Board DS150E interfaces use the same outer casing and look identical externally. The featured-image label identifies the internal version offered on this page; it is not a physical label on the interface. The difference is the internal PCB.
Single Board or Double Board?
| Version | Configuration | Best suited to |
|---|---|---|
| Single Board | Single Board PCB, 3201 firmware and 2022 diagnostic software | Our recommended option where broader and more consistent vehicle/system coverage is required |
| Double Board | Double Board PCB, 1622 firmware and its compatible older software | A lower-cost choice for supported general diagnostic work |
In our experience, the Single Board version provides the broader and more consistent option. Actual functions still depend on the vehicle, fitted modules, firmware and software. Contact us before ordering if a particular function is essential.

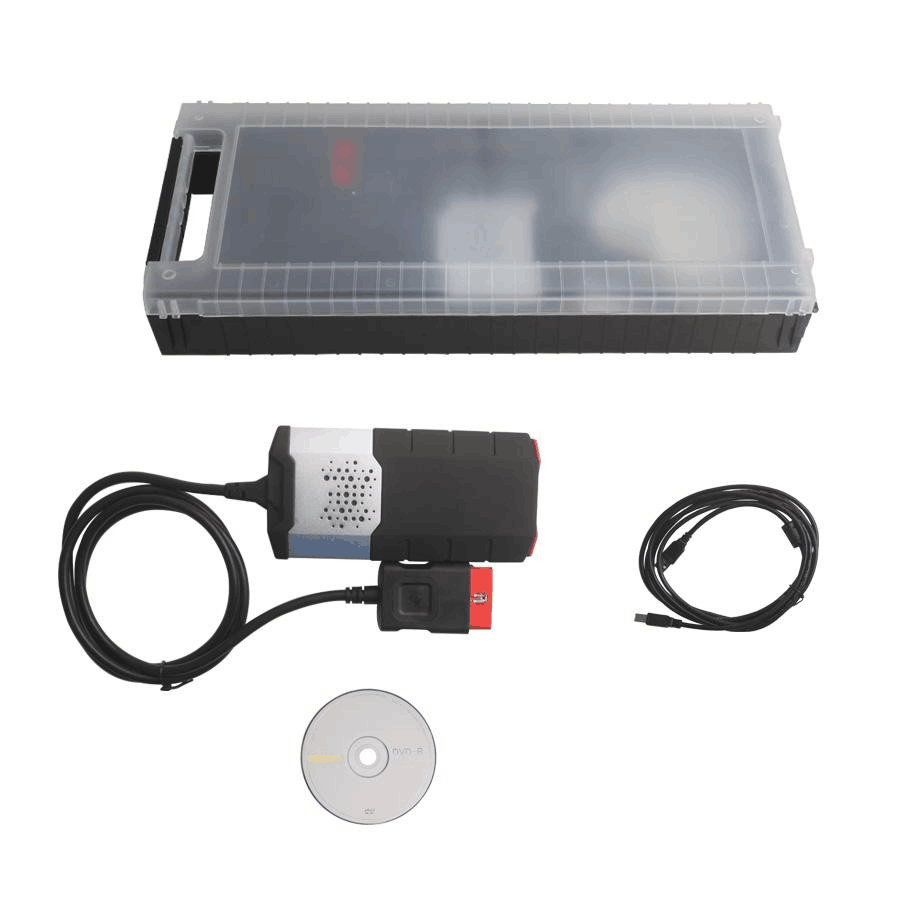

What’s Included
- One Double Board DS150E USB/Bluetooth diagnostic interface
- Supplied OBD/vehicle lead
- USB cable
- Older compatible car and commercial-vehicle diagnostic software
- 1622 firmware configuration
- Digital software download for customer installation
- Downloadable installation and instruction information

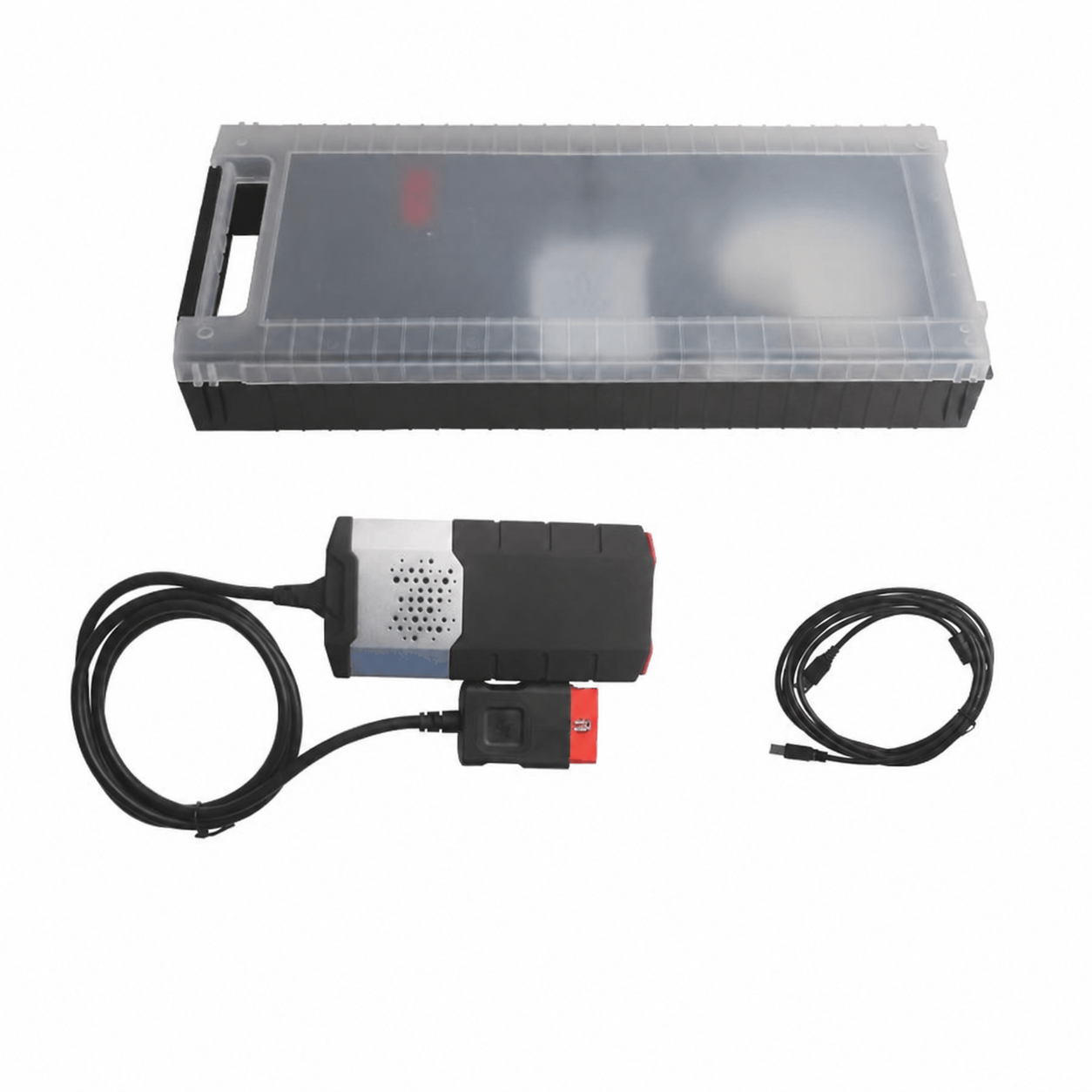

- Hard case only when the With case option is selected
A physical CD/DVD is not included, and remote installation is not included. The customer installs the supplied older software from the digital download provided after purchase.
Internal Hardware
This product is sold as the Double Board internal version. The external housing is shared with the Single Board model, so the PCB cannot be identified from an exterior photograph.
Diagnostic Capabilities
Depending on the vehicle, fitted control modules, firmware and software, supported functions can include:
- Reading and clearing fault codes
- Live data and vehicle/system scans
- Engine, ABS, SRS/airbag, transmission, instrument and body-system diagnostics
- Service resets and selected basic settings
- Generic EOBD/OBD-II diagnostics
- VIN/system identification and flight-recorder functions where supported
Compatibility notice: not every function is available on every vehicle. Coverage varies by manufacturer, model, production year and installed control modules.

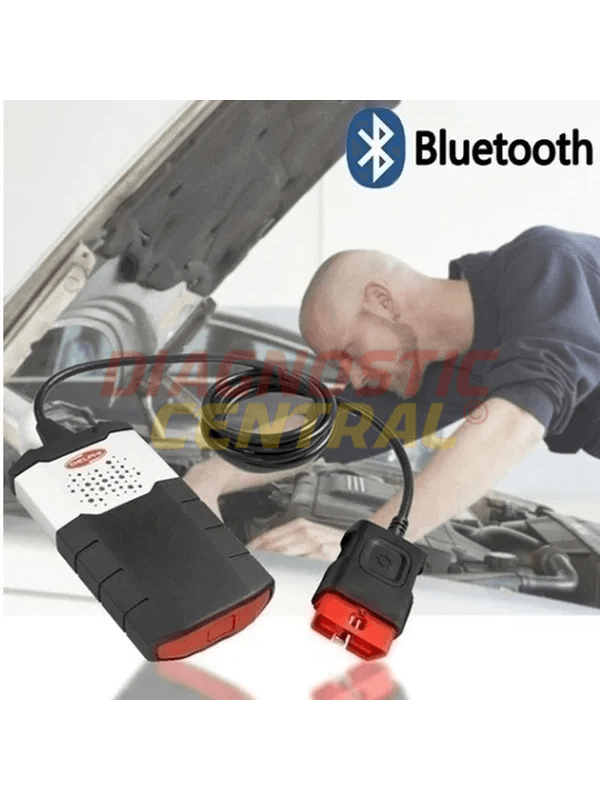

USB and Bluetooth Connection
The interface supports USB and Bluetooth communication. For the most stable connection, use the supplied USB cable whenever practical, especially during operations that should not be interrupted.
Software and Windows
This version uses 1622 firmware with an older compatible diagnostic-software build. The download is supplied after purchase for customer installation. Windows compatibility and installation requirements depend on that software build; contact us before ordering if support for a particular Windows version is essential.
12V and 24V Vehicle Precaution
The interface can be used with supported 12V and 24V vehicle systems. Charging voltage on a nominal 24V vehicle can rise to approximately 27–30V and may damage the interface. Use an appropriate 24V-to-12V OBD power adaptor where required.
Support and Compatibility
UK stock is tested before dispatch. Installation assistance and product support apply to the supplied hardware/software combination as described for this version. If a particular function on a specific vehicle is essential, contact us before ordering.
Diagnostic Central is an independent supplier and is not associated with or endorsed by Delphi or Autocom.
